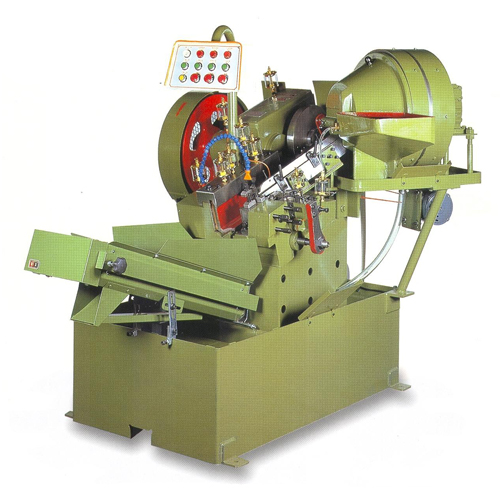

ZR 1.5H
ZR 1.5H
Product Number：
Diameter range: 2-6 mm
Maximum thread length: 50 mm
Rolling dies: 90 x 105 x 25
Capacity: 150-250 pcs/min
Optional accessories:
- Vibrator
- Chip separator
- Centralize lubricating system
| MODEL | MAX THREAD DIAMETER (mm) |
MAX THREAD LENGTH (mm) |
MOVING DIES STATIONARY LENGTH (mm) |
MOTOR (HP) |
CAPACITY (PCS/MIN) |
PACKING VOLUME (CM) |
WEIGHT (KG) |
|
| NW | GW | |||||||
| ZR 1.5H | 2-6 | 50 | 90x105X25 | 3-1/4-1/8 | 150-250 | 175x145X170 | 1250 | 1450 |
| ZR 1.5H | 2-6 | 76 | 90x105x25 | 5-1/4-1/8 | 150-220 | 175x145x170 | 1350 | 1550 |
