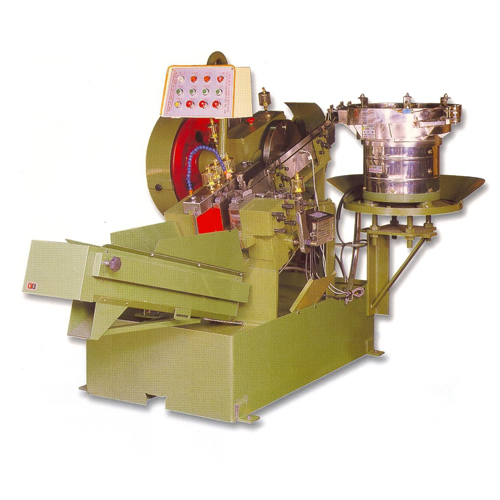

ZR 2.0H
ZR 2.0H
Product Number：
Diameter range: 3-6 mm
Maximum thread length: 76-100 mm
Rolling dies: 100 x 115 x 25/108 x 127 x 25
Capacity: 140-200 pcs/min
Optional accessories:
- Vibrator: ø520mm
- Chip separator
- Centralize lubricating system
| MODEL | MAX THREAD DIAMETER (mm) |
MAX THREAD LENGTH (mm) |
SHANK LENGTH (mm) |
MOVING DIES STATIONARY LENGTH (mm) |
MOTOR (HP) |
CAPACITY (PCS/MIN) |
PACKING VOLUME (CM) |
WEIGHT (KG) |
|
| NW | GW | ||||||||
| ZR 2.0H | 3-6 | 76 | 100x115x25 100x127x25 |
5-1/2-1/8 | 140-200 | 200x160X170 | 1800 | 2000 | |
| ZR 2.0H | 3-8 | 100 | 100x115x25 108x127x25 |
5-1/2-1/8 | 140-170 | 200x160x170 | 1900 | 2100 | |
