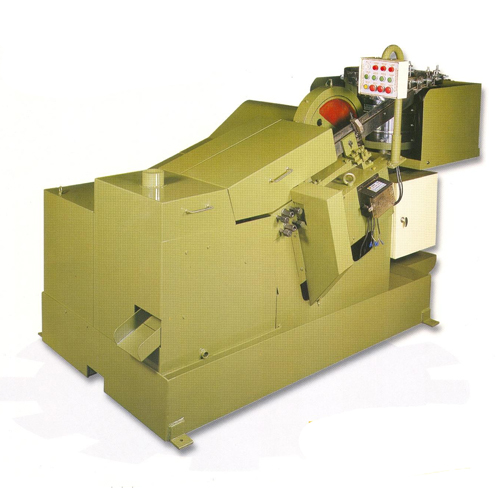

ZR 3.0HN
ZR 3.0HN
Product Number：
Diameter range: 6-10 mm
Maximum thread length: 100 mm
Rolling dies: 150 x 165 x 25
Capacity: 70-140 pcs/min
Optional accessories:
- Cover
- Automatic Stop on Defective Parts
| MODEL | MAX THREAD DIAMETER (mm) |
MAX THREAD LENGTH (mm) |
SHANK LENGTH (mm) |
MOVING DIES STATIONARY LENGTH (mm) |
MOTOR (HP) |
CAPACITY (PCS/MIN) |
PACKING VOLUME (CM) |
WEIGHT (KG) |
|
| NW | GW | ||||||||
| ZR 3.0HN | 6-10 | 100 | 150 | 150x165x25 | 10-1/2-2-1/4 | 70-140 | 290x160X180 | 4000 | 4500 |
