ZR-60N
ZR-60N
Product Number：
Diameter range: 10-19 mm
Maximum thread length: 150 mm
Shank length: 250mm
Rolling dies: 230x265x38
Capacity: 50-80 pcs/min
Optional accessories:
- Vibrator
- Automatic Stop on Defective Parts
| MODEL | MAX THREAD DIAMETER (mm) |
MAX THREAD LENGTH (mm) |
SHANK LENGTH (mm) |
MOVING DIES STATIONARY LENGTH (mm) |
MOTOR (HP) |
CAPACITY (PCS/MIN) |
PACKING VOLUME (CM) |
WEIGHT (KG) |
|
| NW | GW | ||||||||
| ZR-60N-6" | 10-19 | 150 | 150 | 230x265x38 | 25-1/4-2 | 60-80 | 400x255X220 | 6800 | 7400 |
| ZR-60N-8" | 10-19 | 150 | 200 | 230x265x38 | 30-1/4-2 | 50-70 | 400x255x220 | 7200 | 7600 |

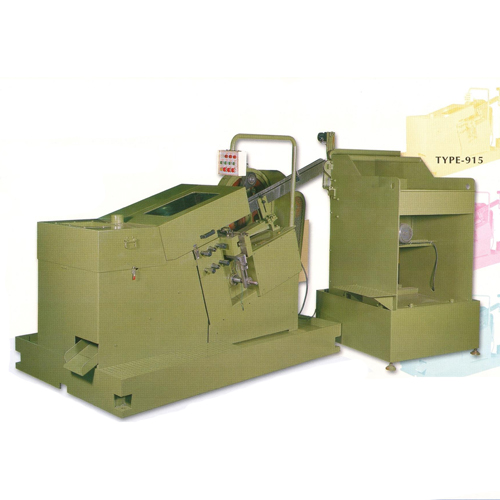

| Layhopper TYPE-915 |
200 | 200 | 2 | 135x135x230 | 1200 | 1450 | |||
