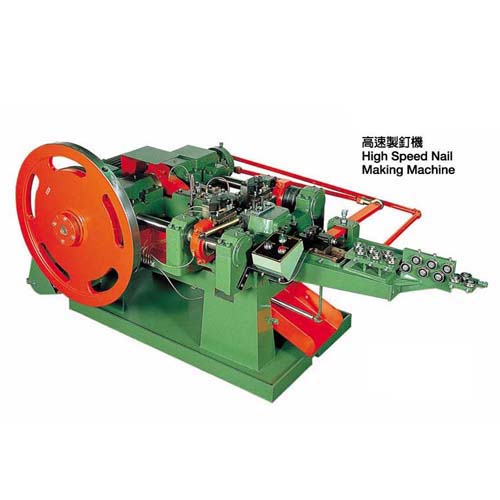

High Speed Nail Making Machinery
High Speed Nail Making Machinery
Product Number：
Nail Making Machines are made into five different models according to the length of nail(any length between 1/2" and 6")

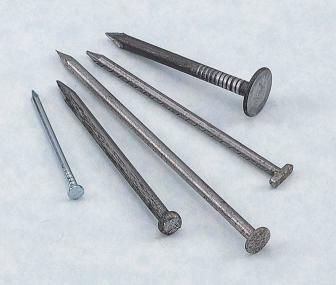

Furthermore, wire nail making machines produce manufacturer not only ordinary nails but also various kinds of special nails and rivets.
| MODEL | WIRE GAUGE BWG(mm) |
EFFECTIVE LENGTH(mm) |
SPEED (R.P.M.)PCS |
MOTOR | N.W.(KGS) | G.W.(KGS) | FLOOR SPACE LXWXH(INCH) |
| CC-1AN | #15-20(0.9-18.3) | 1/2"-1"(12-25) | 550-600 | 1HPX4P | 700 | 800 | 57"X41"X41" |
| CC-2BN | #13-15(1.83-2.4) | 1/1/4"-2/1/2"(32-64) | 450-500 | 2HPX4P | 900 | 1100 | 61"X45"X46" |
| CC-3CN | #10-13(2.4-3.4) | 2/1/4"-3"(56-76) | 300-350 | 3HPX4P | 1200 | 1350 | 82"X64"X52" |
| CC-4DN | #8-10(3.4-4.2) | 3/1/4"-4"(83-101) | 250-300 | 5HPX4P | 1450 | 1620 | 87"X66"X58" |
| CC-5EN | #6-8(4.2-5.2) | 4/1/4"-6"(108-152) | 180-200 | 7/1/2HPX4P | 1600 | 1800 | 113"X71"X62" |
